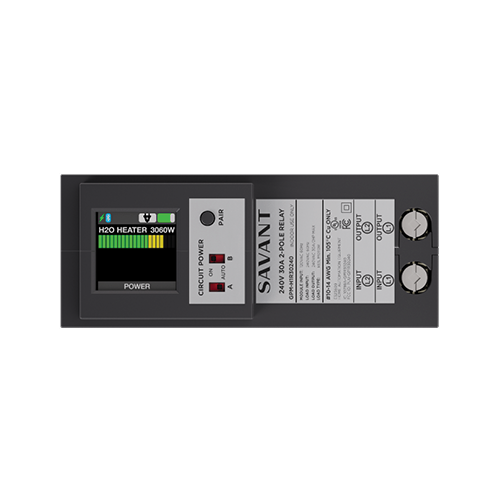

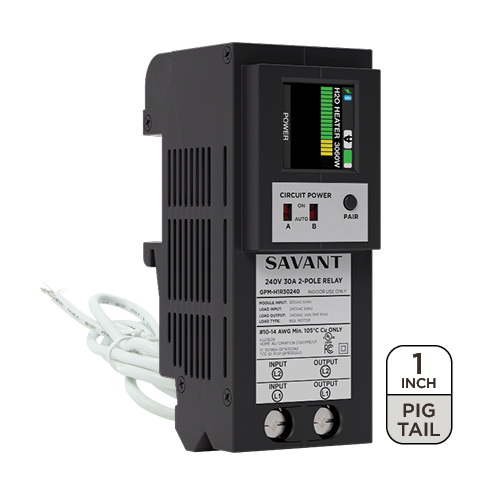

Savant GPM-H1R30240-21 1 IN Single 30A Power Module Pigtail

SKU: 577-0253

Savant, Single BR 30A Power Module, GPM-H1R30240-21



Savant's 30A Power Module (2-Pole, 240V AC) controls and monitors a single circuit up to 30 amps; ideal for larger appliances and sub-systems. Supports 1-Inch On-Center Load Centers.


Key Features


  • Supported for use with Savant Power Systems or as part of a larger Savant Pro system.
  • Compatible with Schneider Homeline, Eaton BR, Siemens, and GE Powermark Gold load centers with a one-inch on-center bus bar.
  • Deployment and configuration via Savant Power and Light 2.0 App or through RacePoint Blueprint
  • Control Capability for loads up to 7200 VA (volt-ampere)
  • Built-in energy monitoring: +/- .5% revenue grade accuracy / 1 sec sample time
  • Dynamic remote management of loads
  • Communicates via Bluetooth Low Energy (BLE) technology
  • Color LCD display for easy identification and load status
  • Switch positioned on front of module allows power to output to be toggled on/off manually
