K2 Systems 4000006-H CrossRail Grounding Lug

SKU: 590-0134
Back

Details

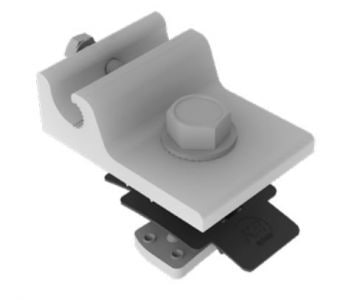

K2, Everest Ground Lug, Tin Plated Aluminum with SS Hardware, 4000006-H



CrossRail components are required to be electrically bonded and grounded via the K2 Ground Lug or Burndy’s WEEB Lug 10 and the use of #6 or #8 AWG solid copper wire. A minimum of one lug is required per each independent row of modules. The K2 Ground Lug must be attached to the top channel of CrossRail, as shown.


  • Top Mount Configuration
  • MK3 technology provides highest rail engagement
  • UL 2703 Listed
  • Works with all CrossRail profiles
  • Made with Stainless Steel and Aluminum
  • No Copper Wire Bending Needed
