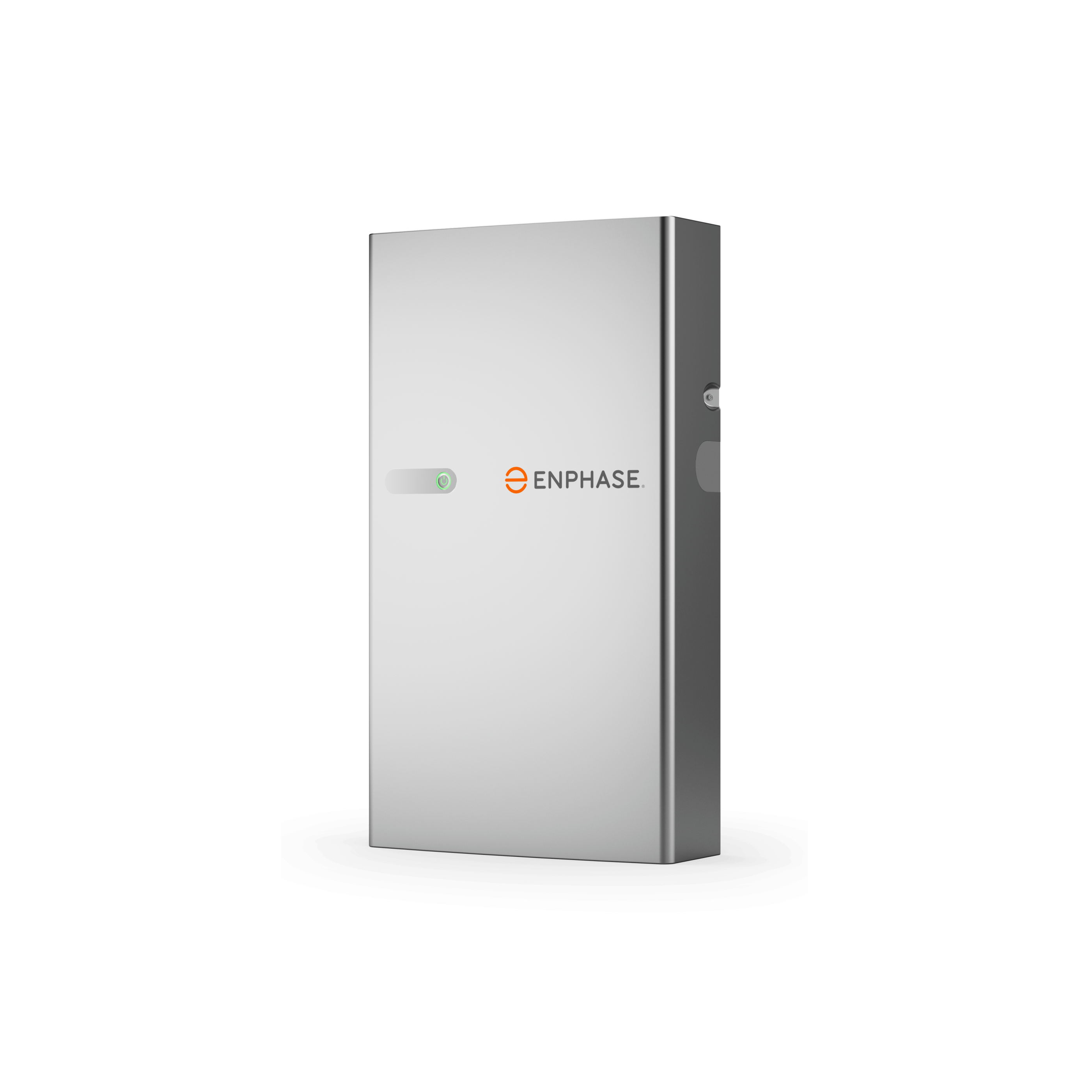

Enphase IQ IQBATTERY-5P-1P-NA 5.0kWh 76V Lithium Iron Phospate Battery (Cover and Wall Bracket)

SKU: 480-0029

Enphase, IQ Battery 5P, Base Unit, Cover, and Wall Bracket, 5kWh LFP Battery, with 6 Integrated IQ8D-BAT Inverters, NEMA 3R, IQBATTERY-5P-1P-NA

An all-in-one, AC-coupled storage system, the IQ Battery 5P is the most powerful Enphase battery yet.

It has a total usable energy capacity of 5.0 kWh, and features six embedded grid-forming microinverters and 3.84 kW of continuous power, as well as peak output power of 7.68 kW for 3 seconds and 6.14 kW for 10 seconds.

Easily integrating with the Enphase Energy System, the IQ Battery 5P can provide backup capability when installed with IQ System Controller 3/3G, and is supported by a 15-year limited warranty. Its modular design means installers can quickly design the right system size to meet the needs of their customers.


  • Fully integrated AC battery system
  • Six embedded IQ8D-BAT Microinverters
  • 15-year limited warranty
  • Field-replaceable components
  • Stable lithium iron phosphate (LFP) chemistry for maximum safety and longevity
  • Cools passively with no moving parts or fans
  • Uses Control cabling for fast and consistent connection
  • Quick and easy installation
  • Remote software and firmware upgrades
  • Grid-forming capability for backup operation
  • Offers homeowners remote monitoring and control from the Enphase App
  • Supports backup, self-consumption, and time of use (TOU) modes
