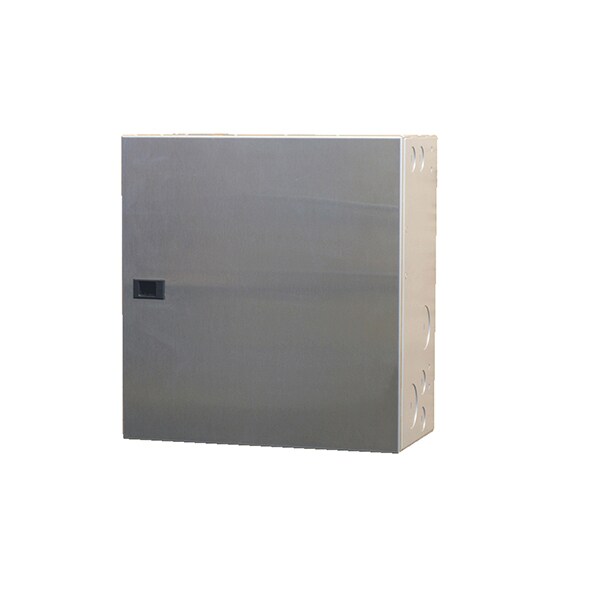

OutBack Power Radian GSLC175-120/240 Pre-Wired Load Center

SKU: 341-0119


Outback, Radian Prewired GS Load Center with two 175A breakers, 2-pole 120/240VAC 50A bypass breakers, 2, 2-pole 120/240VAC 50A input breakers, 500A shunt, 10 busbars, Powder-Coated Finish, GSLC175-120/240

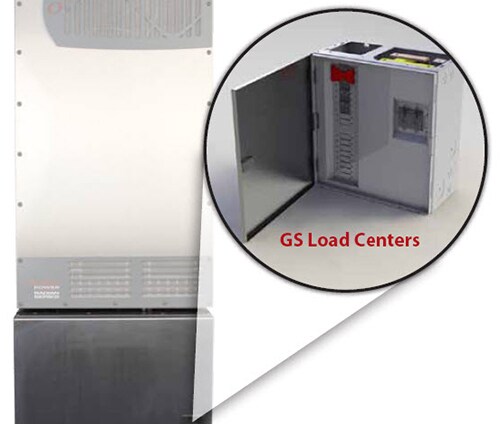

OutBack's GS Load Centers are an integrated communication enclosure series that offers inverter DC overcurrent protection and disconnects, dual AC inputs, grid-tie inverter connection, and 120/240VAC or 230V maintenance bypass for AC and DC system connections in OutBack Radian Series inverter/charger applications.

The options include solutions for custom designs from the ground up as well as factory pre-wired setups for particular applications, all of which are designed to work with the Radian Series inverter/charger family. The GSLC175-AC-120/240 can be used for AC-coupling applications in grid-tied networks.

For the Radian Series inverter/charger, the OutBack GS Load Centers use a standardized approach to simplify the design, distribution, and deployment of energy storage.


  • Safety - Two AC inputs and two DC connections are open. UL 1741 compliance from beginning to end. Integrated fully from a market-leading brand.
  • Efficient - 230VAC and 120/240VAC designs. The dynamic reliability of the system has been improved.
  • Flexible - Pre-wired or personalized options are available for quick and easy installation.
