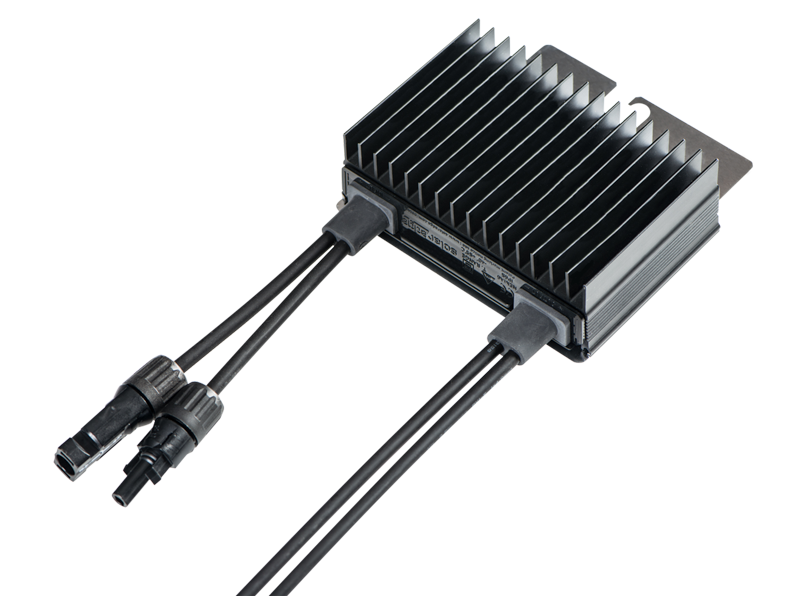

SolarEdge P730 730W Optimizer
SolarEdge, Optimizer 730W, Add-On Box for two 60 or 72 cell modules, 12.5-105V MPPT, 11A, MC4-Compatible In, MC4-Compatible Out, 1000VDC, (Use only with SolarEdge 3-Phase Inverters), P730
The SolarEdge power optimizer is a DC/DC converter that replaces the conventional solar junction box and is connected to each PV module by installers or embedded by module manufacturers. By continuously monitoring the maximum power point (MPPT) of each module individually, the SolarEdge power optimizers increase energy production from PV systems. Furthermore, the power optimizers track each module's output and send data to the SolarEdge monitoring portal for more efficient, cost-effective module maintenance. When the inverter or grid power is turned off, each power optimizer has a special SafeDC function that automatically shuts down the modules' DC voltage.
With multiple orientations, tilts, and module types in the same string, the MPPT per module allows for a versatile installation design. SolarEdge power optimizers automatically maintain a set string voltage when operating with SolarEdge inverters, giving installers even more flexibility when designing optimal PV systems with longer strings and strings of various lengths.
SolarEdge power optimizers come with a 25-year warranty and are compatible with c-Si and thin-film modules.
