Savant GPM-H1R60240-21 1 IN Single 60A Power Module Pigtail

SKU: 577-0254

Savant, Single BR 60A Power Module, GPM-H1R60240-21

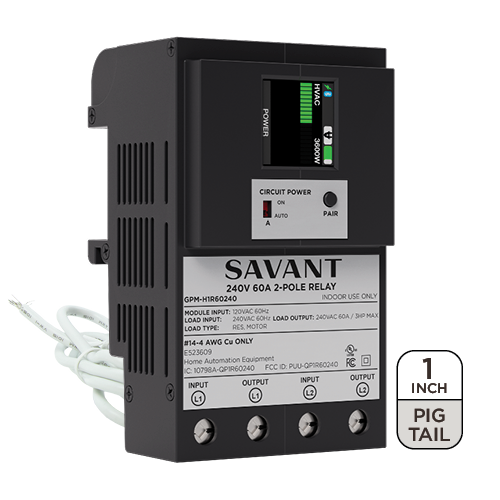

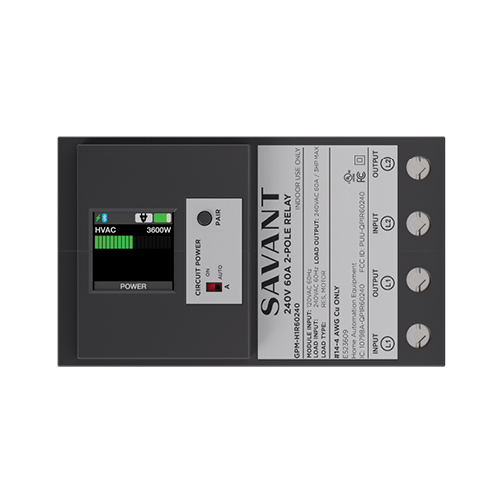

Savant's 60A Power Module (2-Pole, 240V AC with Current Transformer and pigtail neutral) controls and monitors a single circuit up to 60 amps; ideal for central heating & cooling equipment, sub-panels, EV chargers, and more. Supports 1-Inch On-Center Load Centers.

Key Features

  • Supported for use with Savant Power Systems or as part of a larger Savant Pro system.
  • Compatible with Schneider Homeline, Eaton BR, Siemens, and GE Powermark Gold load centers with a one-inch on-center bus bar.
  • Deployment and configuration via Savant Power and Light App or through RacePoint Blueprint
  • Control Capability for loads up to 14400 VA (volt-ampere)
  • Built-in energy monitoring: +/- .5% revenue grade accuracy / 1 sec sample time
  • Dynamic remote management of loads
  • Communicates via Bluetooth Low Energy (BLE) technology
  • Color LCD display for easy identification and load status
  • Switch positioned on front of module allows power to output to be toggled on/off manually
