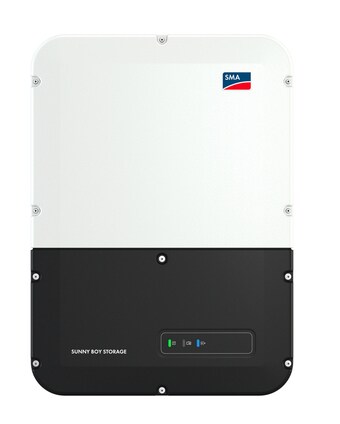

SMA Sunny Boy Storage SBS5.0-US-10 5.0kW Hybrid Inverter
Details
SMA, Sunny Boy Storage SB-5.0, 1 Ph Battery Inverter, 5000W, 240VAC, 60Hz, integrated DC Discon, 3, 10A DC Inputs, with SPS,10 Yr Warr, Transformerless, Arc-Fault Protection, Built in Ethernet/WLAN, use with Li-Ion battery, SMA, Sunny Boy Storage SB-5.0, 1 Ph Battery Inverter, 5000W, 240VAC, 60Hz, integrated DC Discon, 3, 10A DC Inputs, with SPS,10 Yr Warr, Transformerless, Arc-Fault Protection, Built in Ethernet/WLAN, use with Li-Ion battery, SBS5.0-US-10
The Sunny Boy Storage is the newest product in the SMA line. The Sunny Boy Storage was created with energy management services including zero export and peak load shaving in mind. Sunny Storage's AC coupled design makes it simple to integrate existing PV systems as well as new on-grid residential systems up to 30kWp. As long as battery power is sufficient, up to 2000 W at 120 VAC of convenience power can be supplied through a dedicated secured outlet through the Secure Power Supply (SPS).
The inverter comes in a number of sizes and can accommodate up to three 10 A DC battery inputs, allowing for a wide range of device configurations. On the same inverter, each battery input has a voltage range of 100 V DC to 500 V DC and can support various battery brands and capacities.
The Sunny Boy Storage can be accessed via a WLAN link from a smartphone or laptop for easy setup and installation. A direct Ethernet or Wi-Fi link to SunnyPortal/SunnyPlaces via Webconnect simplifies communication.
The new SMA Automatic Backup Unit (SBS-ABU-200-US-10) is designed to interact directly with the SMA Sunny Boy line of inverters and enables the Sunny Boy Storage inverters to be used as a home backup device in the event of a grid failure or disturbance. This device has an automatic transfer switch that disconnects the PV system and loads from the utility grid, providing a small battery backup grid. The Backup Unit Controller, which is included, coordinates grid disconnection and reconnection to ensure minimum downtime while also allowing for unbalanced loads of up to 5 kVA.
When used in combination with SMA Sunny Boy inverters, the Sunny Boy Storage reduces PV power output to fit load in the event that the battery is loaded, allowing you to get the most out of your solar panels.
Features
- Highlights - 97.5 percent efficiency rating. Reliable Power Supply of 2000 Watts. Temperatures range from -13°F to 140°F. Three 10 A DC battery inputs are available. 3.8, 5.0, and 6.0 kW versions are available. It comes with a 10-year warranty that can be extended up to 20 years. For the USA and Canada, it is mentioned to UL 1741-SA and UL 1699B. IEEE 1547, IEEE 929, FCC Part 15 A& B, and CSA C22.2 107.1-1 compliant.
