S-5! S-5-NH 1.5 Mini Metal Roof Clamp
S-5!, Clamp, Size NH, Mini, fits 1-1/2" Nail Strip Metal Roof Profiles, No Bolt, S-5-NH 1.5 Mini

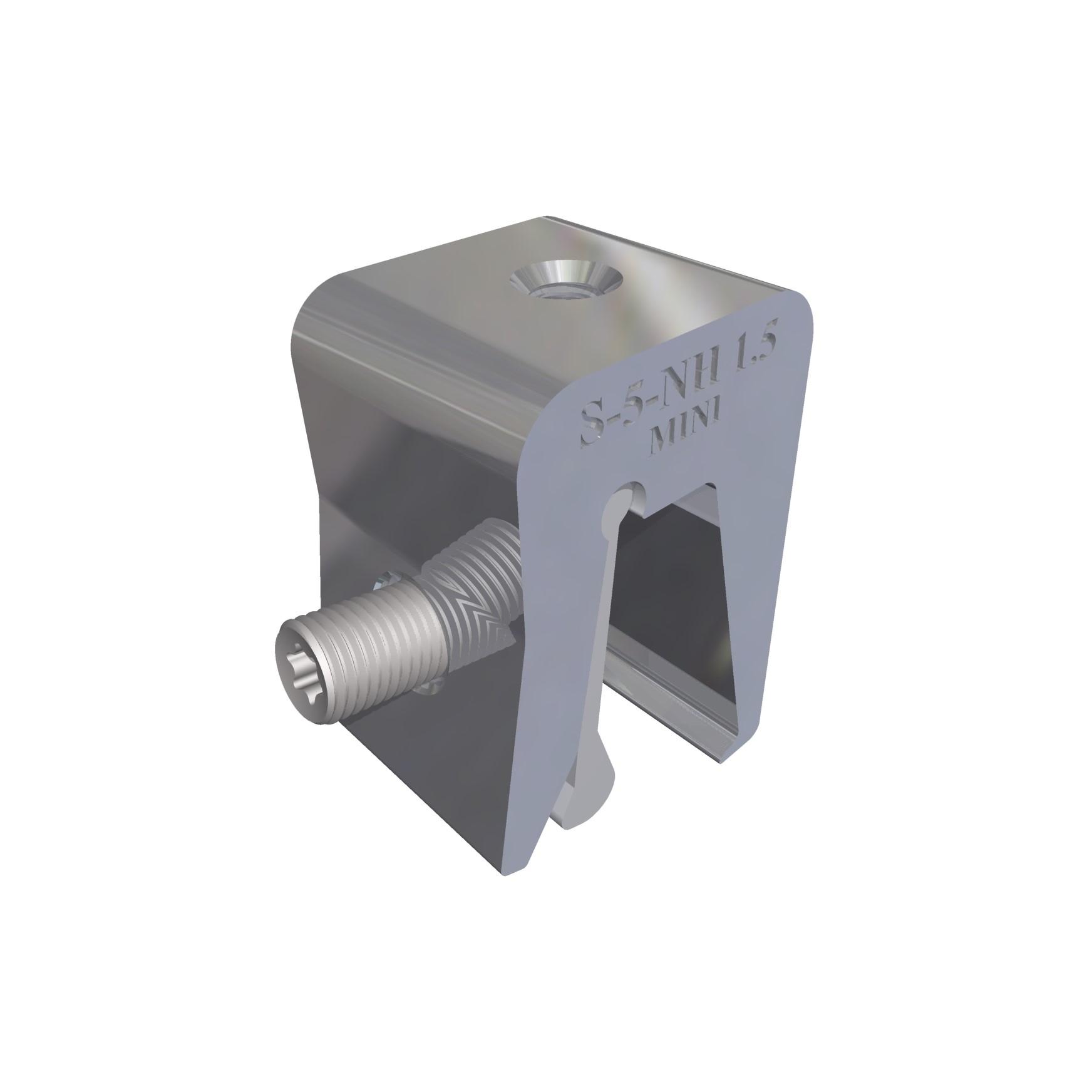

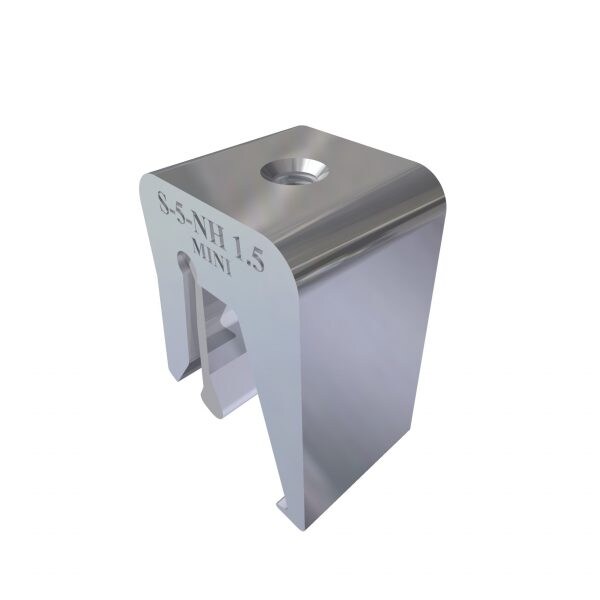

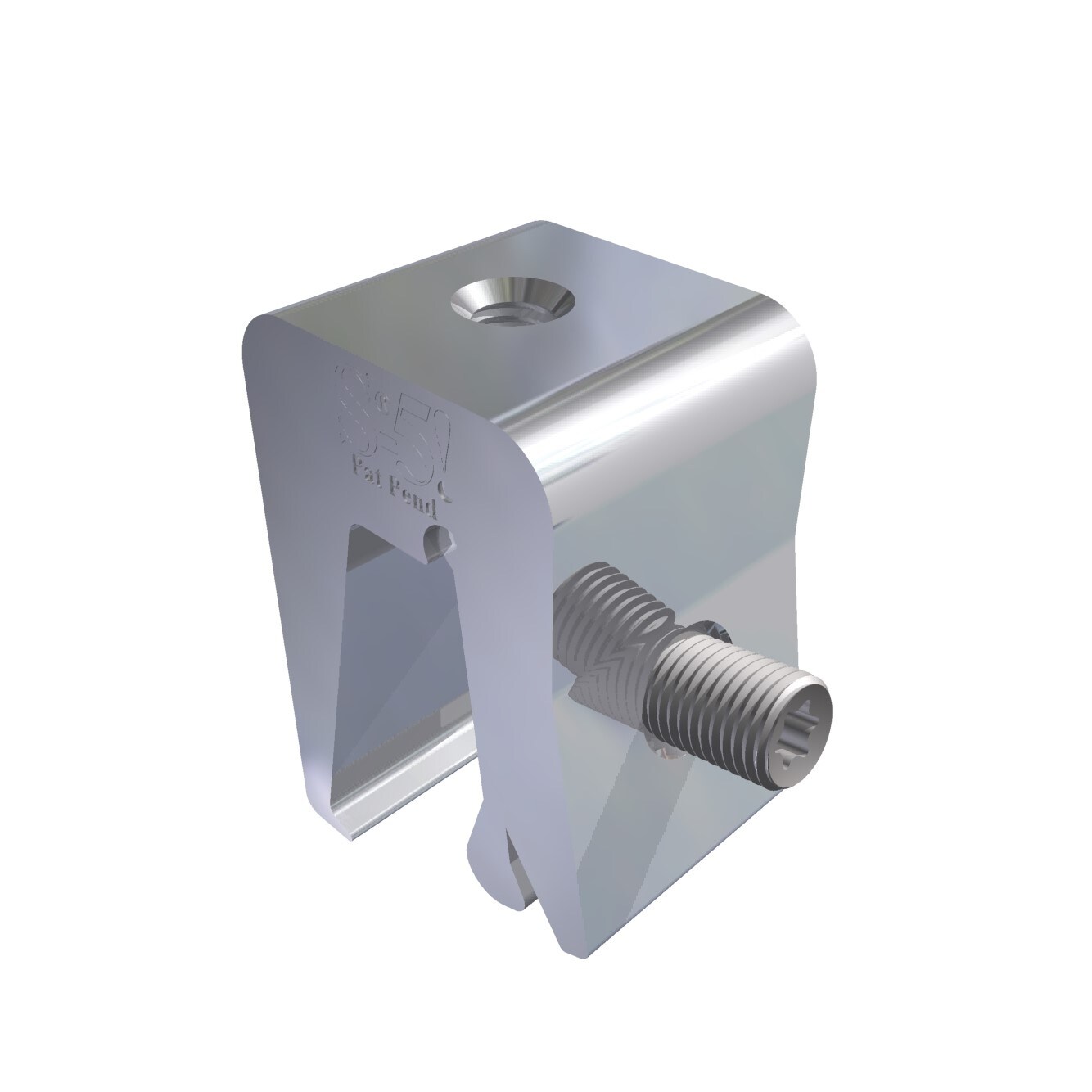

Designed specifically for 1-1/2” nail strip profiles with a wider horizontal dimension (> 0.475” and ≤ 0.800”), the S-5-NH 1.5 (“NH” stands for nail strip hinge) is an ideal mounting solution for VicWest Prestige, NewTech FF150 and similarly dimensioned profiles.
The innovative insert is a “hinge” design and features a toe to engage the female portion of the panel. It forms to the shape of the seam, preventing damage at the point of attachment, while offering you optimal holding strength. The hinge insert is also reversible to allow for proper fit on both wide and medium-width profiles.
For ease of installation, the T-30 Torx setscrews are angled upward to facilitate tool insertion. The hinged insert is also staked at one end to facilitate installation.
Disclaimer: While we strive to keep our item documents updated, item documents may have been updated by our manufacturers. Please note the date the document was created - for the most up-to-date item details, please refer to the manufacturer's website.
Limited Lifetime Warranty
Metal Roof Innovations, Ltd (MRIL) warrants that all S-5! products manufactured by it and bearing its name are free from defects in material and workmanship on the date of first sale and FOR THE LIFE OF THE ROOF. The sole and exclusive remedy for breach of this warranty is repair or replacement of the S-5! manufactured product which is defective.
