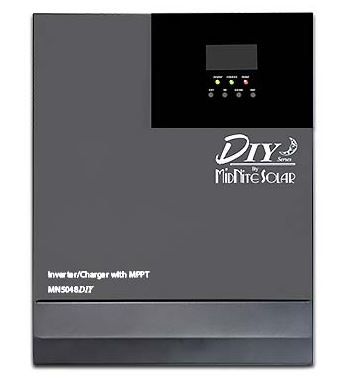

MidNite Solar MN5048DIY 5.0kW Battery-Based Inverter

SKU: 311-0089

MidNite, MN5048 DIY Off-Grid Battery Inverter, 5000W, 48Vdc, 120Vac Sinewave, 60Hz, 63A AC By-Pass, 40A AC Charger, with Built In 500V MPPT Charge Controller, 1 Year Warranty, MN5048DIY

Offering a simple, all-in-one installation and flexible programming, the new MidNite Solar Inverter/charger DIY Series will charge virtually any battery chemistry. With excellent surge capability, the DIY Series will start the most demanding 120VAC loads. Perfect for your off-grid cabin or house, the DIY Series is designed to be affordable, dependable, and supported by the industry’s best customer service personnel at MidNite Solar.


  • System Voltage: 48VDC
  • Max Rated Power: 5000W
  • Surge Power: 10000W
  • Power Factor: 1
  • Input Voltage: 120VAC
  • Input Voltage Range: 85-140VAC +- 2% Adjustable
  • Input/Output Frequency: 60Hz
  • Output Voltage: 120VAC +- 5%
  • Output Waveform: Pure Sine Wave
  • Peak Efficiency: >95%
  • Max AC Charging Current: 40A
  • Internal Bypass Current: Up to 63A
  • Conversion (Bypass and Invert): 10ms
  • Max PV Input Power: 5000W
  • Max PV Charging Current: 80A
  • Max PV Input Voltage: 500V
  • Algorithm: MPPT
  • MPPT Voltage Range: 120 - 450V
  • Battery Type: Lead Acid or Lithium
  • Battery Voltage Range: 40 - 60V DC
  • Operating Temperature: -15C ~ 55C
  • Storage Temperature: -25C ~ 60C
  • Humidity: 5% ~ 95% (3 Layer Paint Protection)
  • Warranty: 1 Year
